Description

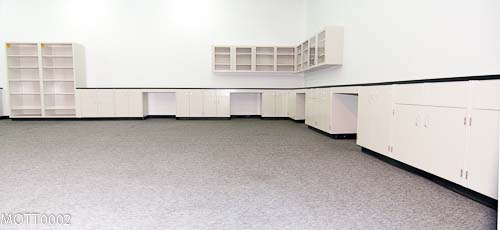

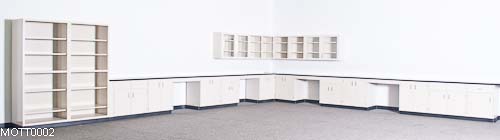

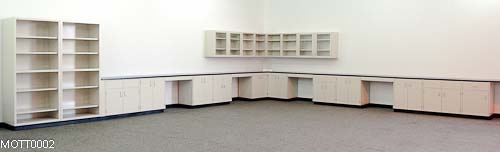

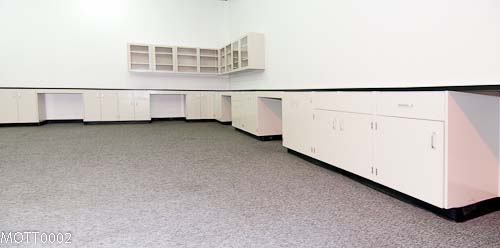

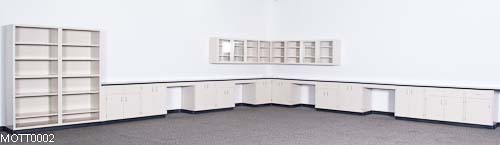

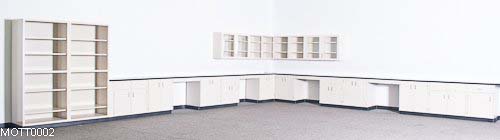

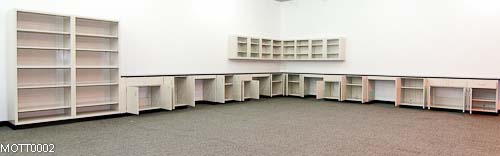

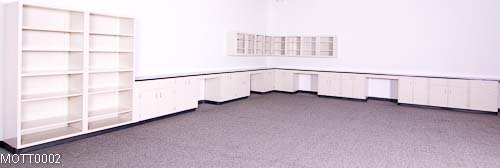

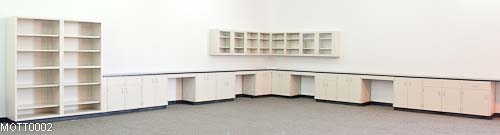

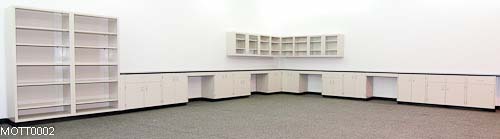

27′ 3.75″ x 23′ Base Cabinet Group / 34.75” Tall / 24” Deep
9′ x 9′ Wall Cabinet Group / 30” Tall / 14” Deep
Base Cabinet Dimensions:
Wall A Fits 27′ 3.75″ (327.75″) Total Run)
36″ Bookshelf 6 Shelf 84″ Tall
36″ Bookshelf 6 Shelf 84″ Tall
3.75″ Spacer

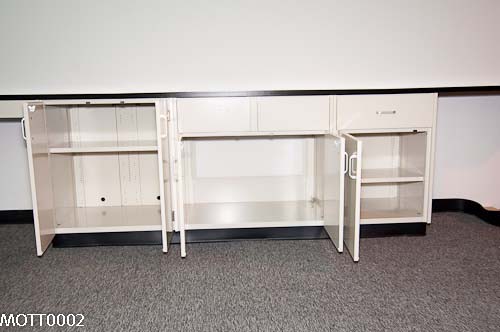

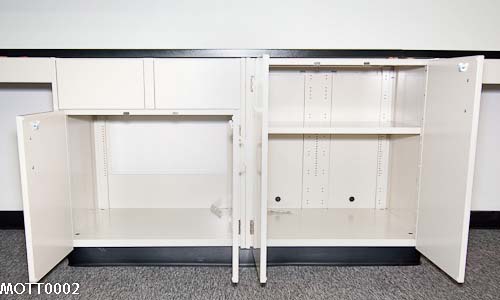

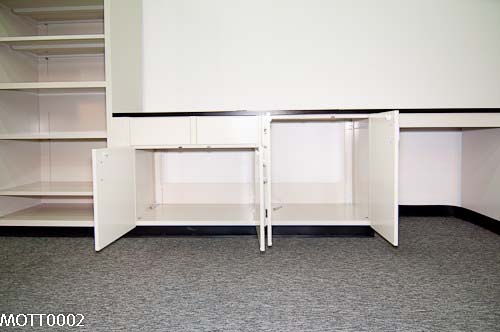

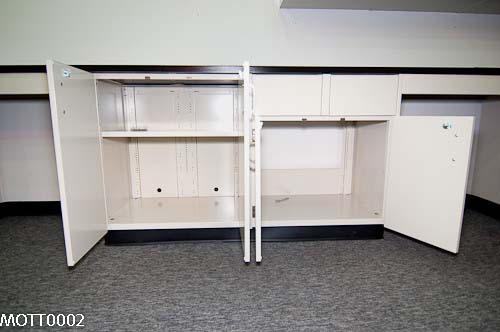

36″ 2 Door Cabinet
30″ 2 Door Cabinet
36″ Desk
30″ 2 Door Cabinet
30″ 2 Door Cabinet
36″ Desk
30″ 2 Door Cabinet
*(Total cabinet width: 303.75″ + 24″ corner clearance = 327.75″)*
Corner Area
* 24″ x 24″ Open Corner Space Required
Wall B Fits 23′ (276″) Total Run)
30″ 2 Door Cabinet
36″ Sitting Area
30″ 2 Door Cabinet
30″ 2 Door Cabinet
36″ Desk Area30″ 2 Door Cabinet
36″ 2 Door Cabinet
24″ Door Drawer Cabinet
*(Total cabinet width: 252″ + 24″ corner clearance = 276″)*
Wall Cabinet Dimensions:

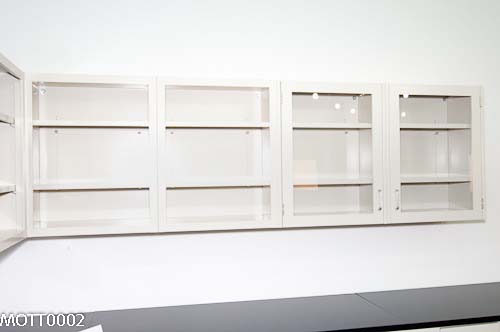

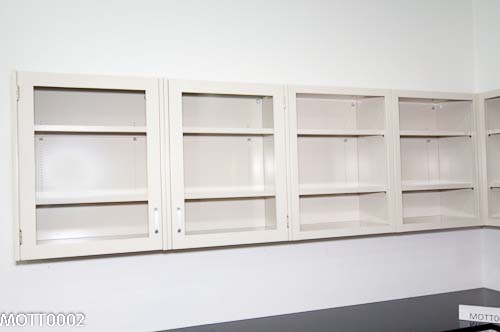

24″ Wall Cabinet /Glass Door
24″ Wall Cabinet /Glass Door
24″ Wall Cabinet / Shelves, No Door
24″ Wall Cabinet / Shelves, No Door
*(Total cabinet width: 96″ + 12″ corner clearance = 108″)*
Corner Area
* 12″ x 12″ Open Corner Space Required
24″ Wall Cabinet / Shelves, No Door
24″ Wall Cabinet / Shelves, No Door
24″ Wall Cabinet / Glass Door
24″ Wall Cabinet /Glass Door
*(Total cabinet width: 96″ + 12″ corner clearance = 108″)*
