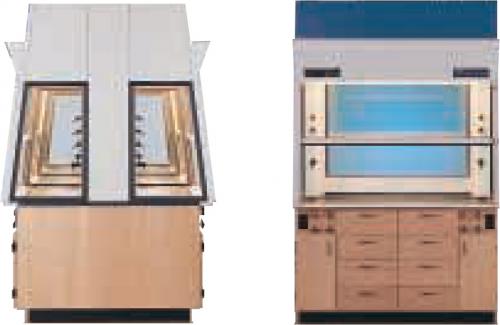

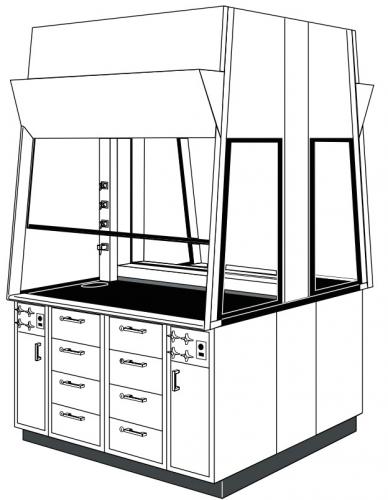

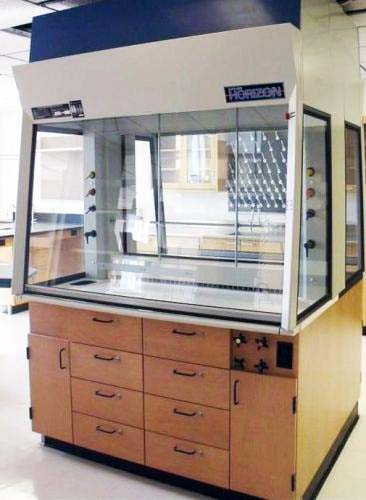

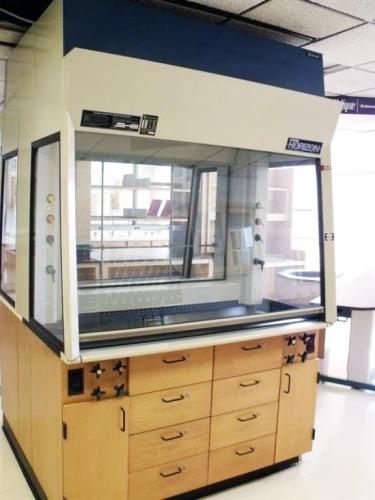

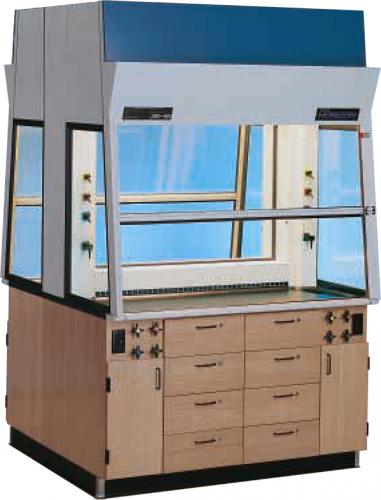

5′ Fisher Hamilton Horizon Full-View Fume Hood


Please reach out to us if you
-Have questions
-Need something bigger or smaller
-Would like to add a sink or service valves
Call Us! We have 200+ Fume Hoods in stock!

Request Info or call 815-670-6400


There is no extra charge for prepping or loading, please reach out for a shipping quote.


Fume Hood Exterior Dimensions:
Width: 60″
Depth: 48″
Height: 60″ (With Cabinets 93″)

Work Area (Interior) Dimensions:
Width: 46″
Depth: 40″
Height: 42″

Cabinets Dimensions:
(1) 12″ Wide Single Door Cabinet
(3) 12″ Wide Single Door Cabinet W/ (Gas/Air/Water Valves)
(4) 18″ Wide 4 Drawer Cabinet

34 in. (86cm) high opening for set-up
Dished epoxy resin work surface
Flush sill airfoil for easy access to the work surface
Back, side and sash panels on island units are 0.22 in. (5.89mm) laminated safety glass
Assembly has one combination light switch/receptacle and flush plate in the right base cabinet; one 120VAC duplex receptacle and flush plate in the left base cabinet.
Fume Hood Accessories:

12 Gas/Air Valves
DUAL Vertical Sliding Sash
The countertop is Epoxy Resin.
Light on/off Switch
AC Power Plug
